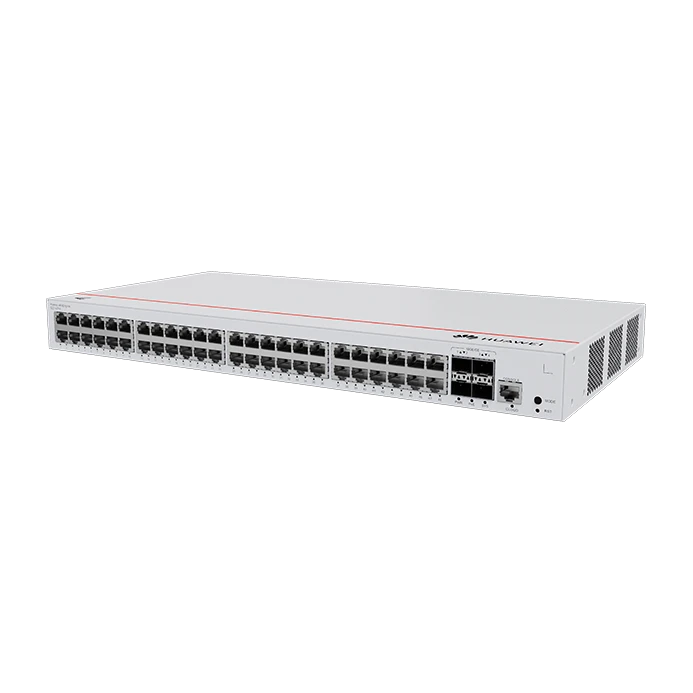

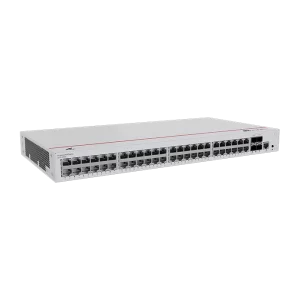

Huawei eKit-S220S-48P4X-48 Switch

  • The Huawei eKit-S220S-48P4X-48 Switch is a powerful Layer 2 managed switch
  • designed for enterprises who want to improve their networking capabilities
  • with dependable and high-performance solutions.
  • This switch, with 48 Gigabit Ethernet ports, is specifically intended
  • to meet the needs of medium to large companies, providing plenty of bandwidth
  • for high-density applications where several devices are connected at the same time.

Original price was: 34.000,00 EGP.Current price is: 32.000,00 EGP.

Added to wishlistRemoved from wishlist 0

Huawei eKit-S220S-48P4X-48

eKit-S220S-48P4X-48 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports | 380W PoE+ | built-in AC power | Packet forwarding rate: 131 Mpps | Switching capacity: 176 Gbit/s

Huawei eKit-S220S-48P4X-48 Switch :

eKit S220S 48P4X 48 101001000BASE T ports 4 x 10GE SFP+ ports | 380W PoE+ | built in AC power | Packet forwarding rate 131 Mpps | Switching capacity 176 Gbits

the best Huawei Switch

The Huawei eKit-S220S-48P4X-48 Switch is a powerful Layer 2 managed switch

designed for enterprises who want to improve their networking capabilities

with dependable and high-performance solutions.

This switch, with 48 Gigabit Ethernet ports, is specifically intended

to meet the needs of medium to large companies, providing plenty of bandwidth

for high-density applications where several devices are connected at the same time.

The inclusion of four SFP (Small Form-factor Pluggable) ports increases

adaptability by allowing for high-speed fiber connections, which can greatly extend network range

and improve transmission speeds over lengthy distances.

This makes the eKit-S220S-48P4X-48 an excellent choice for connecting several office sites

or integrating with existing infrastructure.

One of the eKit-S220S-48P4X-48’s distinguishing features is its Power over Ethernet (PoE) capabilities

which enable the switch to supply both power and data via a single Ethernet connection.

This functionality is especially useful for powering devices like IP cameras, VoIP phones

and wireless access points, which eliminates the need for extra power outlets and simplifies installation.

With a generous PoE budget, the switch can power numerous devices at once

ensuring that critical equipment remains functioning without the clutter of extra wiring.

The Huawei eKit-S220S-48P4X-48 includes powerful management capabilities

that allow network managers to maximize performance while maintaining network security.

It supports VLAN (Virtual Local Area Network) configurations, which enable the segregation of network traffic.

eKit S220S 48P4X 48 101001000BASE T ports 4 x 10GE SFP+ ports | 380W PoE+ | built in AC power | Packet forwarding rate 131 Mpps | Switching capacity 176 Gbits

the best Huawei Switch

Huawei :

Huawei is a multinational technology company

Made important contributions to the communications industry.

Huawei, which was founded in 1987, has evolved

To become one of the largest providers of communications equipment and consumer goods in the world.

Huawei has created a variety of products and services to meet consumer demands

Companies and governments, with a focus on innovation and cutting-edge technology.

Huawei offers a comprehensive and diverse range of products renowned for their quality and performance

From smartphones and tablets to networking equipment and cloud computing solutions.

Huawei smartphones have gained global popularity

Thanks to its innovative features, beautiful aesthetics, and affordable prices.

The company’s dedication to research and development

has led to develop game-changing technology

such as artificial intelligence computers,

Leica engineered cameras and long-lasting batteries.

eKit S220S 48P4X 48 101001000BASE T ports 4 x 10GE SFP+ ports | 380W PoE+ | built in AC power | Packet forwarding rate 131 Mpps | Switching capacity 176 Gbits

the best Huawei Switch

You can also view a similar version from Huawei

Specification: Huawei eKit-S220S-48P4X-48 Switch

Brand

Huawei

Model

S220S-48P4X

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

Dimensions with packaging (H x W x D) [mm(in.)]

90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)

Chassis height [U]

1

Installation type

Rack mounting,Desk mounting,Wall mounting

Chassis material

Metal

Weight without packaging [kg(lb)]

3.24 (7.14)

Weight with packaging [kg(lb)]

4.29 (9.46)

Typical power consumption [W]

49.44

Maximum power consumption [W]

– Without PoE: 64.7 W – Full PoE load: 462.80 W (PoE: 380 W)

Static power consumption [W]

34.04

100% power consumption [W]

49.44

Number of fans modules

2

Maximum number of physical ports on the entire device

52

Maximum number of 10GE ports

4

Maximum number of GE ports

52

Maximum number of FE ports

48

Long-term operating temperature [°C(°F)]

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Restriction on the operating temperature variation rate [°C(°F)]

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature ranges from –5°C (23°F) to +45°C (113°F) when optical modules with transmission distances greater than or equal to 60 km are used.

Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]

0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]

0-5000 m (0-16404 ft.)

Power supply mode

AC built-in

Rated input voltage [V]

– AC input: 100 V AC to 240 V AC, 50/60 Hz – High-voltage DC input: 240 V DC

Input voltage range [V]

– AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz – High-voltage DC input: 190 V DC to 290 V DC

Maximum input current [A]

6 A

Console port

RJ45

Service port surge protection [kV]

Common mode: ±7 kV

Power supply surge protection [kV]

Differential mode: ±6 kV; common mode: ±6 kV

Ingress protection level (dustproof/waterproof)

IP20

Types of fans

Built-in

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Airflow direction

Air intake from left and air exhaust from right

PoE

Supported

Maximum PoE power consumption [W]

380

PoE+ power interfaces

48

Full load PoE power consumption 15.4W (802.3af)

24

Full load PoE power consumption 30W (802.3at)

12

Certification

EMC certification Safety certification Manufacturing certification
