Tenda TEF1105P-4-63W Desktop Switch

  • Supports desktop and wall-mounting
  • Support two modes of Standard,Extend
  • Single port output power 30W,maximum output power 58W
  • 4×PoE+ 10/100Mbps RJ45 ports,1×10/100Mbps RJ45 port

Original price was: 1.550,00 EGP.Current price is: 1.350,00 EGP.

Added to wishlistRemoved from wishlist 0

Tenda TEF1105P-4-63W

TEF1105P-4-63W 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

Tenda TEF1105P-4-63W Desktop Switch :

TEF1105P 4 63W 5 Port 10100Mbps Desktop Switch with 4 Port PoE

the best Desktop Switch

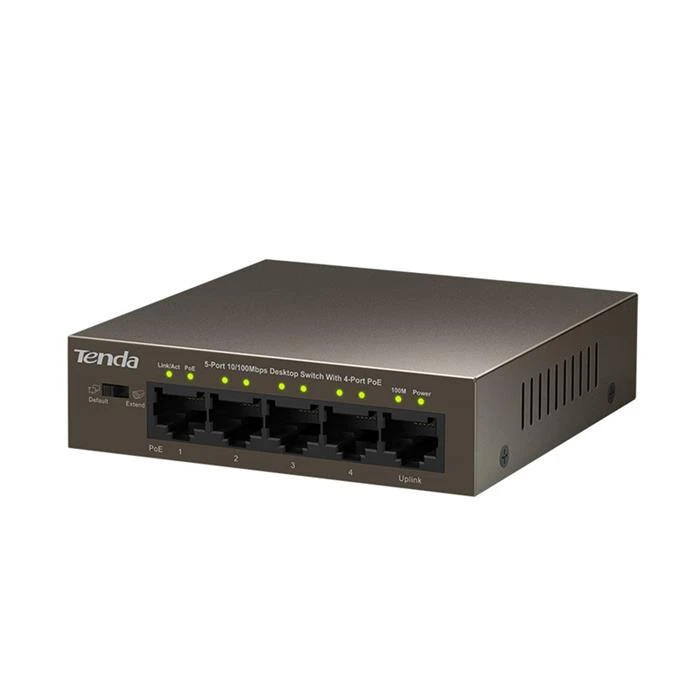

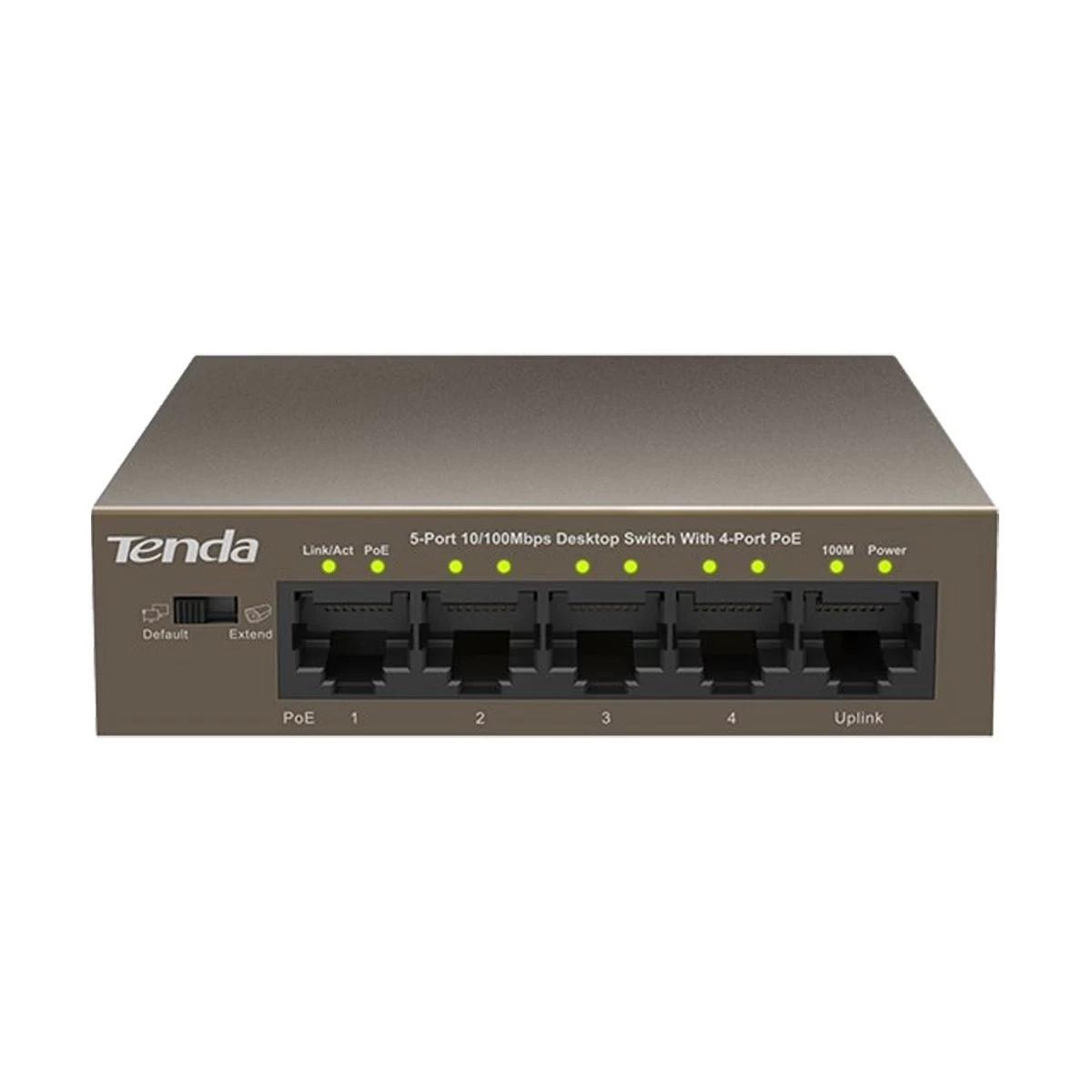

The Tenda TEF1105P-4-63W Desktop Switch is a small and powerful networking device

that improves connectivity in small to medium-sized networks.

This unmanaged switch has 5 ports, four of which enable Power over Ethernet (PoE),

making it suitable for connecting IP cameras, VoIP phones,

and wireless access points to regular network devices such as computers.

One of the TEF1105P-4-63W’s primary features is its PoE functionality

which enables it to supply both power and data over the same Ethernet connection.

This feature simplifies installation by eliminating the need for additional power outlets

making it especially helpful in areas where power access may be limited.

The switch supports the IEEE 802.3af and IEEE 802.3at PoE standards

allowing it to power a wide range of devices.

The switch operates at 10/100 Mbps on each port, ensuring consistent data

delivery for typical networking operations.

It also includes an Ethernet Extend mode, which enables for long-distance transmission of up to 250 meters

well above the conventional 100-meter limit of ordinary Ethernet connections.

This feature is especially useful for installations in larger locations

or if devices are positioned far from the primary network infrastructure.

The TEF1105P-4-63W was designed with durability in mind, and it has 6kV lightning

protection to protect connected devices from power surges and interference.

This functionality is particularly useful in outdoor or industrial situations

where equipment may be subjected to extreme circumstances.

TEF1105P 4 63W 5 Port 10100Mbps Desktop Switch with 4 Port PoE

the best Desktop Switch

Tenda :

Tenda is a Chinese company founded in 1999 in the field of Networking Hardware.

It is a Well-known major Supplier of network Hardware and equipment

It Specializes in Designing, Manufacturing and Marketing routers

Adapters, Converters and other Networking related products.

Tenda is dedicated to Providing Easy-to-install, Low-cost Networking equipment

Reliable and meets the demands of home and small business users.

Some of our best selling items include the AC1200 Dual Band WiFi Router

Tenda Nova Mesh WiFi System MW6 and a variety of network Adapters.

TEF1105P 4 63W 5 Port 10100Mbps Desktop Switch with 4 Port PoE

the best Desktop Switch

You can also check out another version of Tenda

Specification: Tenda TEF1105P-4-63W Desktop Switch

Brand

Tenda

Model

TEF1105P-4-63W

Network standards

IEEE 802.3、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at

LED Indicator

5* Link/Ack LED indicators
1 * Power LED indicator

Interfaces

4*10/100 Base-TX Ethernet Ports(Data/Power)
1*10/100 Base-TX Ethernet Port(Data)

Transmission media

Recommended: CAT5/5e UTP or better

Dimension

100.0mmx100.0mmx26.0mm

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

1Gbps

Packet forwarding rate

0.74Mpps

Buffer

448K

MAC address table

1K

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 58W

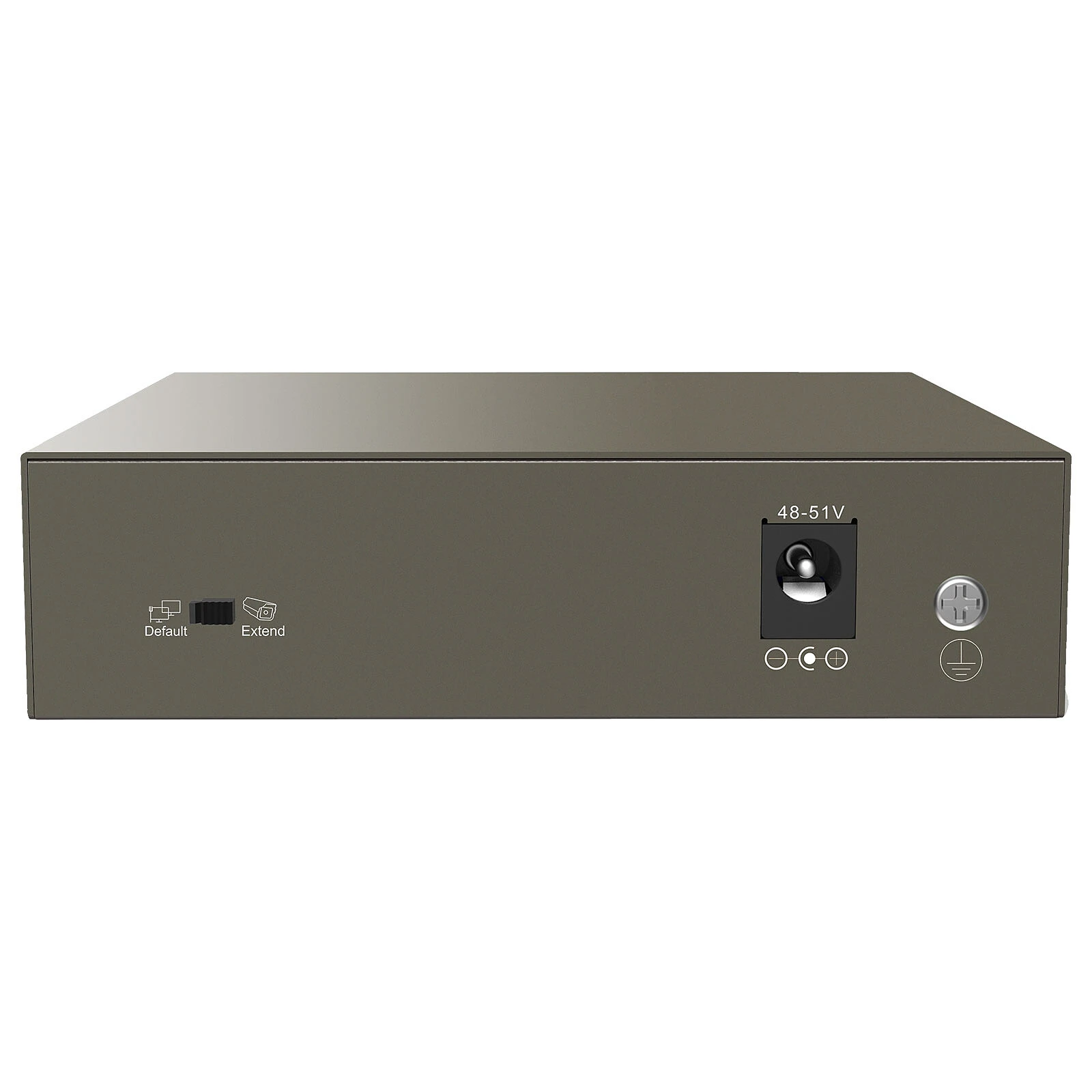

Input voltage

100-240V AC 50/60Hz
51V /1.25A DC(Power Adapter )

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Environment

Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS

Funtions

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other .
Extend Mode: If the extend mode is enabled, the transmission distance of both power and data will extend up to 250m(10Mbps), this funcation can replace the extender and parts of the Fiber. It will extend the distance of the whole system and save the cost of the project.
