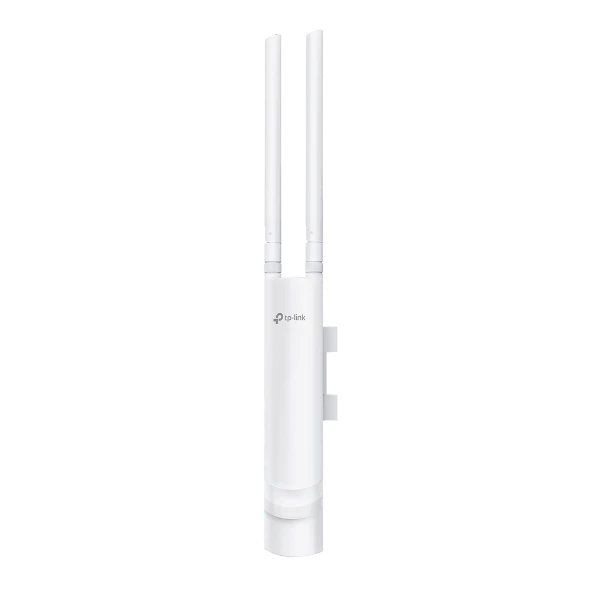

Tp-Link EAP225-Outdoor Access Point

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps1 with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS authentication help to boost your business
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Added to wishlistRemoved from wishlist 0

Tp-Link EAP225-Outdoor

EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Tp-Link EAP225-Outdoor Access Point :

EAP225 Outdoor AC1200 Wireless MU MIMO Gigabit IndoorOutdoor Access Point

the best Access Point

The TP-Link EAP225-outside Access Point is specifically intended to provide strong

and dependable wireless connectivity in outside settings, making it an excellent choice

for companies, schools, and public areas that require extensive coverage.

This access point’s weatherproof casing and sturdy design allow it to operate well in a variety of environments

ensuring consistent performance regardless of weather.

It supports the latest 802.11ac Wi-Fi standard, offering dual-band capabilities

with a combined speed of up to 1200 Mbps.

This high-speed performance is required to handle several people and devices at once,

ensuring a smooth internet experience for activities like as video streaming, online gaming, and general surfing.

One of the EAP225’s distinguishing characteristics is its omnidirectional antennas

which improve signal coverage and allow users to keep a reliable connection even at extended distances.

This makes it ideal for outdoor locations such as parks, colleges

and large event venues that require reliable Wi-Fi access.

The gadget is intended to cover a radius of up to 200 meters

allowing it to successfully serve vast outdoor areas without requiring extensive extra equipment.

The EAP225 also supports Power over Ethernet (PoE), which simplifies installation

by allowing the device to receive both power and data over a single Ethernet wire.

This function is especially useful in outdoor installations where power outlets are restricted or difficult to obtain.

EAP225 Outdoor AC1200 Wireless MU MIMO Gigabit IndoorOutdoor Access Point

the best Access Point

TP-Link :

TP-Link is a Multinational Manufacturer of Networking products for both Consumers and Businesses.

Routers, switches, access points, and smart home devices are among the many items available from the company.

Since its Inception in 1996, the company has grown to become one of the leading producers of network solutions.

An important asset to the company is its focus on Providing Enterprise-class Functionality while being Affordable.

Many of TP-Link’s products are designed to fit a variety of budgets

Making it Accessible to individuals and small organizations that want to develop their network Infrastructure.

TP-Link is also noted for the Simplicity with which its products can be used

As well as the Intuitive Interfaces of its applications and web Interfaces.

EAP225 Outdoor AC1200 Wireless MU MIMO Gigabit IndoorOutdoor Access Point

the best Access Point

You can also check other version of Tp-Link

Specification: Tp-Link EAP225-Outdoor Access Point

Brand

Tp-Link

Model

EAP225-Outdoor

Interface

1x Gigabit Ethernet RJ-45 port

Button

Reset

Power Supply

802.3af PoE and 24 Passive PoE(PoE injector included)

Max. Power Consumption

10.5W

Dimensions ( W x D x H )

8.5 × 1.8 × 1.1in.
(215 × 46 × 27 mm)

Antenna

2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi

Weatherproof Enclosure

IP65

Mounting

Pole/Wall mount (mounting kit included)

Concurrent Clients

220+**

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

2.4GHz, 5GHz

Signal Rate

802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions

Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

Transmission Power

• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

Omada App

Yes

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Omada Controller Software

Yes

Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

Email Alerts

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Certification

FCC
RoHS

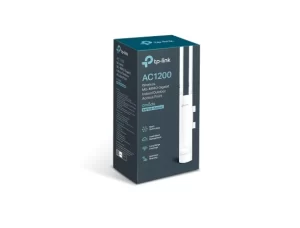

Package Content

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
